1/48 Flashback Aviatik Berg D1

by Huberlu

--------------------





The windows are displaced downwards.  A machine gun was made because it shows of the opening. Lateral small hoods are in tube of gouache manufactured on a plastic model with wooden piece.

Decals are too rigid and I did not succeed in applying them. So I used Adobe illustrator 10 (free 30days), and frisket. The wing is painted in grey. Two other shades are painted on top of the grey. Between every shade it is necessary to clean all wing with hot water and detergent to take away the traces of glue from the paper frisket.
It is better to do a new "frisket mask" for every shade to avoid paint getting under the mask. All hexagons which are not joint ifs are caught in the scotch tape Tamiya.

Weathering with oil painting diluted in essence with "smoke" X19 tamiya.

  • Pale grey: 21B1 - FS36628; 5* humbrol 34 (white) 1*humbrol 64

  • Terracota: 7D7 - FS32169 is an approximate match; FS:32169 Deep Yellow 6*Hu:100 + 4*Hu:154 + 1*Hu:34 + 1*Hu:110

  • Orange grey: 5B3 - Fs32630 is an approximate match; 2*Hu7 + 1* Hu62 + 1* Hu64 + 3* Hu 34

  • Prussian blue: 21F7 FS15048 or FS25053/21F6 - FS15048; Humbrol 15

  • GreyishBlue: 23B4 8*Hu65 + 1*Hu15 + 6*64

  • Green:1*Hu155 + 1*Hu 159

Rigging wire are in stretched plastic, coloured in the black marker and glued together. They are tense in dry hair. On the undercarriage, "Luggage elastics" are in thread of tin, refined by rolling it on a glass.
Small lateral hoods are in tube of gouache manufactured on a plastic model with wooden piece.

Click on images below to see larger images

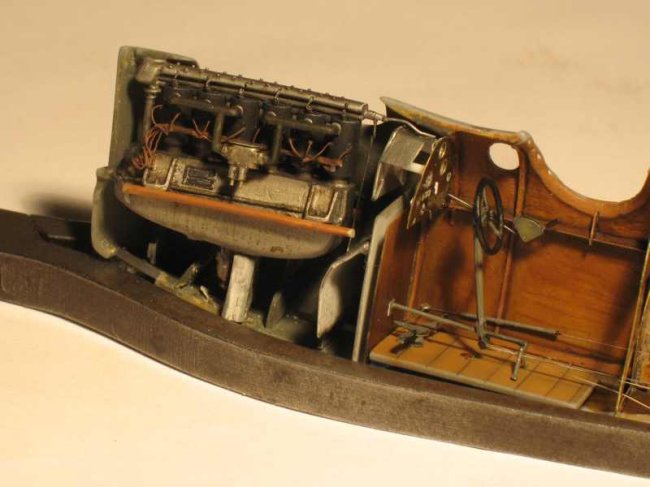

Floor, top of the motor and reservoir are done  with pieces of plastic:

A very long job, wait rather for a new model....

You can see the assemblage here:
http://www.theaerodrome.com/forum/models/35666-aviatik-berg-d1-paint.html

http://www.theaerodrome.com/forum/models/

and here in French with more pictures:
http://www.master194.com/forumww1/viewtopic.php?f=2&t=874

Huberlu

Click on images below to see larger images













































Photos and text © by Huberlu
