1/48 Hasegawa F-86 Mk6 Black Tulip

Erich Hartmann

by Busolini Massimo


Birthday-announcement banner

Gal mainpage Ad above main pic


Gal mainpage Ad below main pic

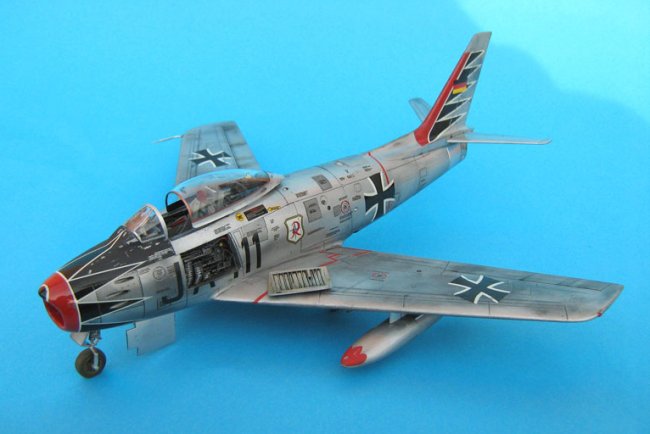

This model is the F-86 Mk6 from Hasegawa in 1/48 scale, devoted to Erich Hartmann, the ace from World War Two.  The kit is as of usual very precise, and she offers the extremities wings in resin, because this version asks for the shortening of the wings.  To the kit I added the beautiful AIRES cockpit, as well as the fuselage machine guns, that I chose to show on one side.

Click on images below to see larger images

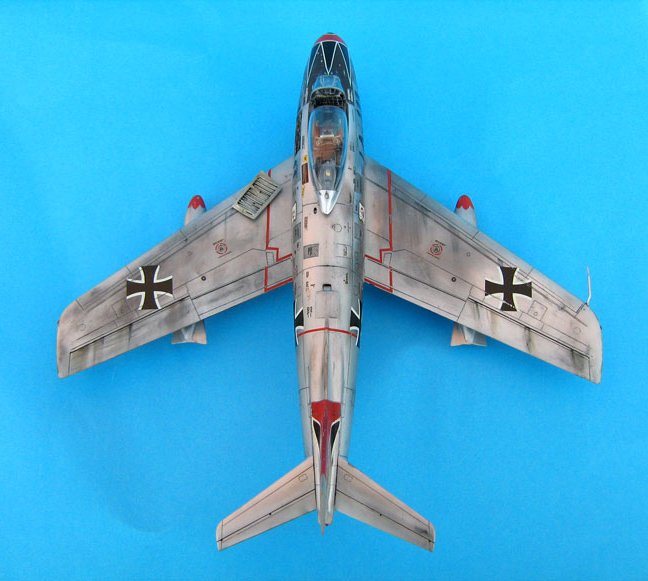

Once filled and sanded, I painted the entire model in matt Black, this to create a base for the aluminum.  Subsequently I applied the red matt in the engine intake and on the tail, and I painted with some aluminum slightly darkened various panels on the fuselage.  I masked all the coloured areas with Tamiya masking tape and I applied the Aluminium Metalizer from Model-Master, as after all all the colors.  After two coats of gloss clear, I applied the decals and softened them with the Mr. Mark Softer from Gunze, and again applied two coats of gloss clear.

The shine of the various fuselage panels had to be different and some panels were masked with post-it notes, and then I applied a light  dull coat.  A beautiful washing of black temper and a coat of gloss clear was applied in non homogeneous way and the job it was complete.

Busolini Massimo

Click on images below to see larger images















Gal mainpage Ad above main pic

Vertical ad

Photos and text by Busolini Massimo
