This is my Revell
1/32 Fw 190 F-8. I lost track of how long it took me to complete this
model, but let’s just say it took longer than I anticipated and became a true
“labor of love” for me.
Construction
Although
the kit is offered as the F-8 version, it contains a number of parts to build an
A version as well. These include
the MG 17 cowling machine guns, gun cover and ammunition boxes, instrument
panels for both the A and F versions, outer wing 20 mm cannons, and an A type
fuselage. The kit also
contains 500kg, 250 kg, 50 kg bombs, and a 300-liter fuel tank in addition to a
pair of underwing 30mm Mk 103 cannons.
Fuselage
Starting
with the fuselage, I had to add a few items to convert it into an F-8 version.
This included scratchbuilding a port side hand grip, closed fuel port,
and open fuel cap as well as the starboard access panel.
These were cut from plastic card and shaped with a small file and
sandpaper. The open fuel cap was
further detailed with brass wire around the inside part of the cap, with the
fuselage plumbing being made from plastic rod.
The small indentation in the center part of the plumbing was achieved by
taking a small diameter piece of brass tubing and gently turning it back and
forth over the plastic rod until a circular indentation was made in the plastic.
I made a locating pin for the fuel cap by drilling a small hole into the
back of it, gluing a small piece of brass wire, and inserting the pin into a
small corresponding hole drilled in the fuselage.

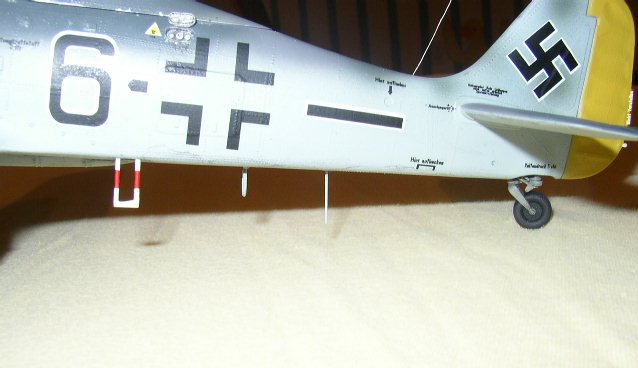

While I found a good picture of the interior of the cap in the Squadron In
Action Book, I could not find a good picture of the plumbing itself, and
used pictures of completed models on the IIinternet as my source, so there’s
some conjecture on my part. The FuG

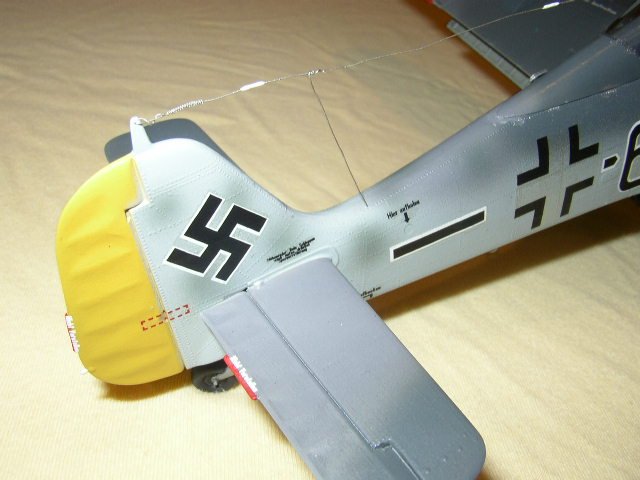

16ZY antenna on the lower rear fuselage was made from brass rod, while the
aerial wire is beading wire and the insulators are Elmer’s glue painted white.
The tension spring on the aerial wire just in front of the tip of the
vertical stabilizer is filament from a light bulb.

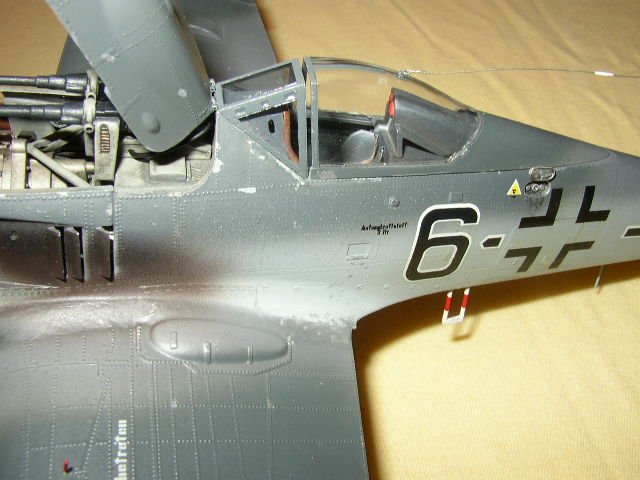

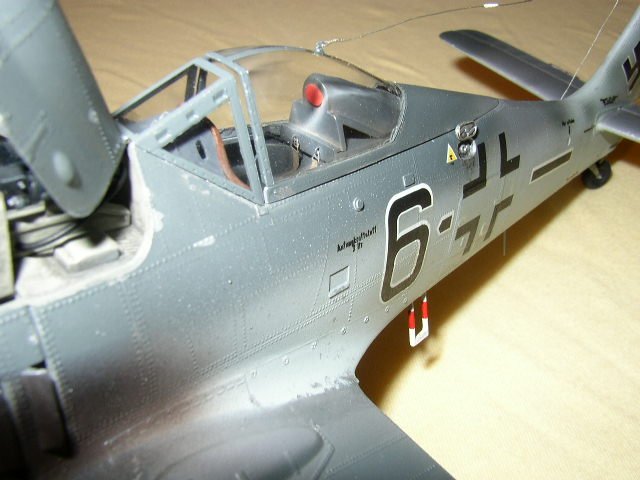

Cockpit
The
handgrips and opening for the gunsight on the instrument panel shroud were cut
out by hand. The handgrips were
shaped using an approximate stencil from a piece of plastic in my spare parts
box with the openings made by using a small drill and hobby knife, then filed
and sanded to size. The gunsight
opening was made by measuring the width and depth of the gunsight from the
instrument panel and cutting out the opening using a hobby knife.
The coaming on the instrument panel shroud was made from lead sheet that
was cut to length according to a template made from masking tape, and then
folded in half using the edge of a 6-in. metal ruler.
It was then fitted over the edge of the shroud to achieve the final
shape, painted with Model Master Leather, and drybrushed.
The
Revi 16B gun sight is from Cutting Edge with the reflector glass made from
Evergreen clear plastic cut to shape and glued with Elmer’s glue.
An electrical cord on the control stick for firing the weapons was
fashioned from copper wire. The
shoulder harness and seat belts are from Eduard, with the shoulder harness
fittings just forward and below the armored headrest being made from with copper
wire inserted into holes drilled into the armored headrest.
The pilot’s seat is from JRutman Products.
I also scratchbuilt the bar for the rudder pedals bar and added Eduard
rudder pedals.
Click on
images below to see larger images
|
|
|
|
Engine
Area

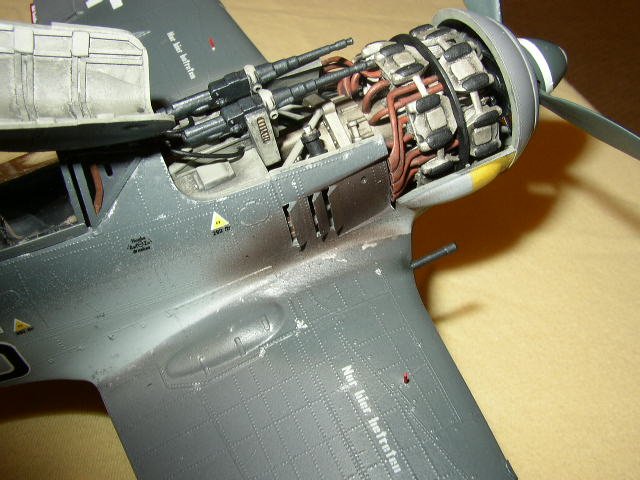

I
added copper wire to simulate the spark plug wiring on the engine, as well as
the wiring going from the engine to the engine bulkhead.
Plastic rod was used where some of the wiring connects to the bulkhead.
The oil filter (the cylinder-shaped object attached to the starboard side
of the engine support mount, in front of the cowling machine guns) was made from
a piece of sprue from the kit. The
piece was sanded and filed to size, with the rings being plastic strips and the
top part fashioned from two different-thickness pieces of plastic card, cut and
shaped to size. I simulated the
lines coming out of the oil cooler using copper wire with plastic rod, cut and
drilled out accordingly, simulating the attachment points into the oil cooler.
The MG 131 machine gun ammunition boxes are from JRutman Products, which
were included with the wheel well set. This
was very welcome, as the kit does not come with the proper MG 131 ammunition
boxes for the F-8, but rather contains those for the MG 17 guns, as mentioned
previously. The ribbing on the
inside of the cowl gun cover was scratchbuilt using plastic strips and plastic
card. Since I wanted the gun cover
to be displayed as laying on the windscreen, I scratchbuilt a crude hinge using
small pieces of brass tubing that were glued to the top of the cover and used
copper wire that was glued to the underside of fuselage lip. I cut and shaped
the wire so that brass tubing would slip over it.
I also scratchbuilt interior detail on the inside of the upper cowling
engine cover using plastic strips and plastic card.
Finally, the exhaust openings were hollowed out using a small drill and
hobby knife.
Wheel
Wells, Undercarriage, & Wings
The
wheel wells that are molded in the kit are not accurate for an Fw 190, so I
replaced them with the wheel well set from JRutman Products.
I added some detail to the wells using brass rod and copper wire.
I had to sand and grind the tops of the wells and the interior of the
wings quite a bit to get the wheel wells to fit inside the wings.
Also, even with all the grinding and sanding I did, I was still not able
to get a good fit between the wings and fuselage and had to use a lot of plastic
strips and super glue to secure a strong bond.
I then kept applying layers of filler over the joint and kept sanding
until it was smooth. Unfortunately,
I lost some of the detail of the wing root MG 151 covers in doing this.
Due
to the installation of the new wheel wells, it was discovered that the inboard
wing openings for the MG 151 cannons did not correspond with the placement of
the blast tubes running through the wheel well.
To remedy this, I filled in the openings with plastic card and filler and
sanded the edge of the wing smooth. I
then drilled new openings for the cannons to correspond to the blast tubes.
To secure a good fit of the cannon barrels to the front of the wheel
well, I drilled a small hole in the rear of each barrel and then glued a piece
of brass rod in each hole to make a locator pin.
I centered each barrel in the hole and used a little pressure while
turning the barrel so that the brass pin started to make a small indentation in
the front of the wheel well. Once this indentation was made, I drilled a small
hole in the wheel well for the brass pin to fit into, with the result being a
very strong fit.
The
lower wing area forming the front part of the wheel wells housing the lower
engine exhausts was also cut out from the kit and replaced with the JRutman
part. Various diameters of brass
rod were used to replicate the ends of the lower exhausts.
The small fixed fairings to the left and right of the bomb rack designed
to channel the exhaust gases from the lower exhaust bank were replicated using
pieces of plastic card, cut and sanded to size.

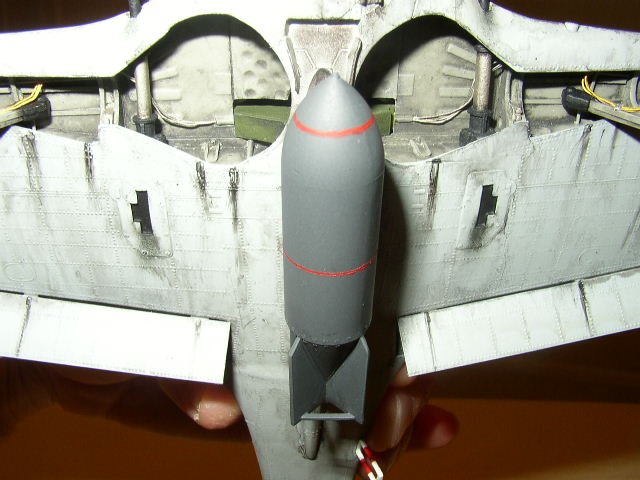

The ETC 501 rack that came with the kit was the correct one for mounting
the 300-liter fuel tank but not the correct one for mounting a 250 kg or 500 kg
bomb. Since I wanted to mount the
500 kg bomb, I removed the brace for the fuel tank and scratchbuilt the lower
ends of the bracket for a bomb using plastic card and plastic rod.
The
aluminum brake lines attached to each main gear strut were made from brass wire,
with the rubber hose at the top and bottom of the lines being made from copper
wire (sleeved) painted black. The
color of the brake lines was made from Testors Rust mixed with a little white.
The connecting point between the brake lines and rubber hoses was made
from drilled-out plastic rod. The
straps fastening the brake lines to the main gear struts were made from lead
foil from a champagne bottle. The
electrical wires on the upper radius strut (attached to the main gear strut)
were made from copper wire painted yellow, while the microswitch on the radius
strut (where the yellow wires are attached) was made from a small piece of
plastic card. The oleo scissors
were filed and sanded down, and holes were drilled into them.

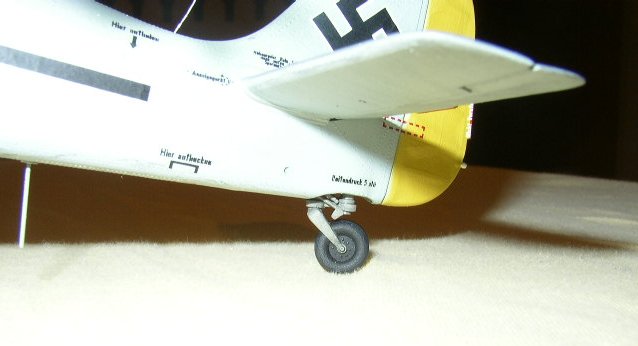

The tail wheel strut assembly was detailed using plastic rod and plastic
card to simulate the actuation rod and drag yokes.
The
landing gear indicators on the upper surface of the wings were made from brass
rod, painted red and white, and inserted into a small hole drilled into the
wing. The sheet metal covers over
the outer wing cannon openings was simulated using a thin plastic card, cut and
filed to size. The gun camera
opening on the leading edge of the port wing was made from brass tubing with
clear plastic used to simulate the covering.
The landing lights on the wingtips were simulated by painting the light
area with a light gray color (e.g., Ghost Gray), then painting the tip white.
Once the white had dried, I used green and red transparent waterproof
markers, respectively, to cover the light areas.
After Dullcote was applied to the model, I brushed Model Master Gloss
Clear Top Coat over the light area to simulate the appearance of glass.
Painting
& Weathering
For
painting the model, I used Humbrol and Model Master Enamels and Acrylics.
The camouflage scheme is the standard RLM 74 (Gray-Green) and RLM 75
(Gray-Violet) upper surfaces over RLM 76 (Light Blue) lower surfaces with some
splotches of RLM 71 (Dark Green) over the tail area.
I sprayed all these colors freehand with an airbrush.
The rudder and cowl band were masked and airbrushed with RLM 04 Yellow.
The stripes on the bombs are hand painted using RLM 23 Red, with the
bombs being RLM 66 Black Gray. Three
coats of Future Floor Wax were brushed on by hand to seal the model for
weathering and prepare the surface for decals.
I used the kit decals, which were applied using Micro Set Solution.
I
applied an acrylic wash to the underside, wheel wells, landing gear, ordinance,
engine area (engine and machine guns), and inside of the cowl machine guns cover
using Polly S Night Black mixed with water.
For the cockpit, I applied an acrylic wash using Polly S Light Brown.
Drybrushing was done by mixing the various base colors with white.
The exhaust stains were achieved by airbrushing Model Master Burnt Umber,
followed by a light spray of Gunze Sangyo Soot inside the Burnt Umber.
The
fuel stain on the fuselage side under the open fuel cap was created using Gunze
Sangyo Oil mixed with a little brown and thinned with water.
It was then applied lightly to the model with a brush and gently
“pushed” down the side with a damp rag to achieve the effect of
dripping down the side of the plane. The
exhaust stains were achieved by airbrushing Model Master Burnt Umber
followed by a light spray of Gunze Sangyo Soot inside the Burnt Umber.
The powder stains from the guns were made by drybrushing using
Humbrol Panzer Gray. Paint chipping
was done by spraying certain areas of the model (wing leading edges, wing
roots, fuselage sides, propeller blades, etc.) silver.
Once the base coat was applied and let to dry about 40 minutes or
so, the paint was then “chipped” off using a small piece of drafting tape to
reveal the silver underneath. Additional
chipping was done using a silver pencil and applying silver paint with a small
brush. Oil and fluid stains on
the landing gear struts, underside, and engine cowling were done by applying a
small amount of Polly S Night Black and streaking it back with a damp rag.
The cannon and machine gun barrels were all hollowed out using a small
drill, and wiring was added to the machine guns using copper wire to dress up
the area a little more.
Click on
images below to see larger images
|
|
|
|
The

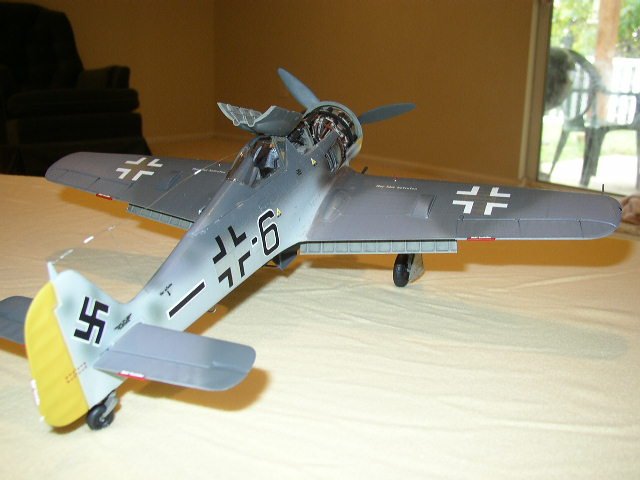

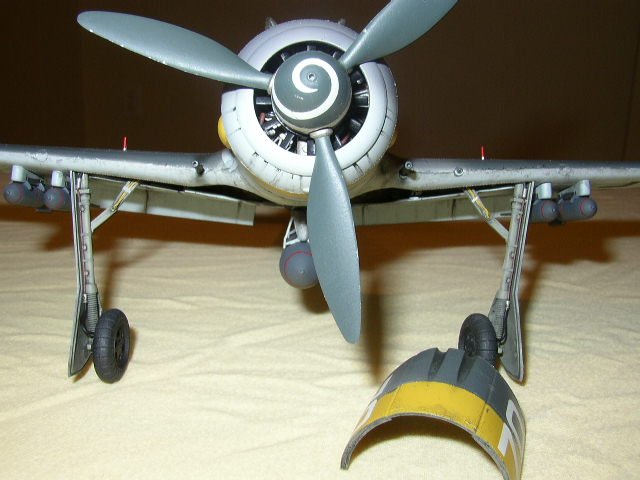

model depicts a machine of an unknown unit based in Bohemia in 1945.
Although Hasegawa has recently released a number of newly tooled 32nd
scale Fw 190 kits, older kits such as this one allow the modeler to try a lot of
scratchbuilding. I’d also like to
say that if you want to do detail work on an Fw 190, I can’t recommend the
Squadron Walk Around book enough. The
photographs and text in the book are outstanding.
I would have liked to see more detail photos of the engine and cowling
machine guns, but then again, this probably would have meant fewer pictures of
other areas of the plane.
I
hope this article was helpful and that you enjoy the pictures.
Happy
Modeling!
Rick
IPMS
St. Louis
Click on
images below to see larger images
|
|
|
References:
-
Fw
190 in action, Squadron/Signal Publications Aircraft No. 44 (1999)
-
Aerodata
International Fighters of World War II, Squadron/Signal Publications (1980)
-
Walk
Around Focke-Wulf Fw 190 A/F, Squadron/Signal Publications (2000)
-
Focke-Wulf
190: Defending the Reich 1943-1945, Stackpole Books (2000)
-
FLuftwaffe
Schlachgruppen, Osprey Publishing (2003)
|
|
