INTRO
This is one from my collection,
Mini Hobby Model’s 1/48 Sukhoi Su-30 MK Flanker. They are the latest version
of Sukhoi Su-27 family and this version looks the same as the Su-27UB.
Basically this version was developed
from the Su-27UB operational conversion trainer function to Su-30MK, two-seat long
range multi role interceptor and for export. This is a fourth-generation MRCA
(multi role combat aircraft) and equipped by the modern radars, efficiently
for pilot to track a target with BVR (beyond visual range). With 12 pylons,
this Flanker can carry all variety of the latest missile such as R-27P, R-73E, R-77/RVV-VE,
3M80E, Kh-58E ad others. For excellent maneuvers, Su30MK have powered high
power engine AL-31FP with TVC (trust-vectoring controller).
This Flanker has been operated by
Russian, China (Su-30MKK), India (Su-30MKI), Indonesia (Su-30MK) and coming
next Malaysia (Su-30MKM).
CONSTRUCTION
Mostly many flanker versions use single wheels for front gear landing but for
Su-30MK, it’s different from others flankers before. The Su-30MK has a twin
wheels for the front landing gear. For this model, I used twin wheels like the
Su-33
Sea Flanker operated by Admiral Kuznetov Class, Russian aircraft carrier. When
I bought this model, single wheels for front landing gear are available but I
chose to use twin wheels because it’s very easy to build.
Click on
images below to see larger images
|
|
|

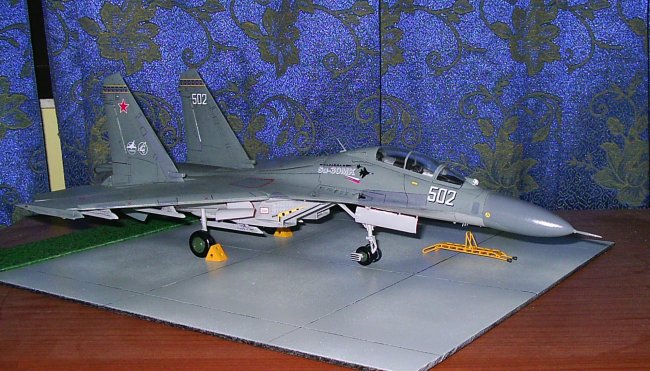

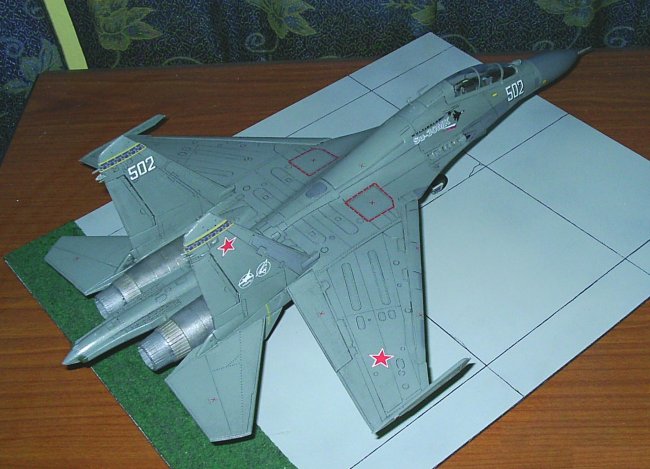

PAINTING
For painting, I used custom
aerosol spray paint for my flanker. Actually this paint is not for models and I
bought it from a local hardware shop. That funny, but I’ve no choice because paint
for model is very expensive. I’ve got a low budget, low skills and low
facilities.
Firstly for exhaust and shielding
around the GSh-30-1 cannon, I used a mix-up Flat black (G195) with Silver
(A331) to get a Metal gun color. I painted this part by using a tiny brush a
after that for the body (above) I used Pale Grey (D336) and for the
underside I used Light
Grey (C255). Before us, I washed and cleaned up my model in the soapy water to
remove all greasy finger marks or all fillers chipper or dusk and after that,
used masking tape to mask off the areas for example below aircraft, fuselage,
air intake, exhaust and others. For nose aircraft I used Dark Grey (G226)
after undercoat by Pale Grey (D336).
For interior air landing doors, I
paint a red color by permanent marker and all light at front gear landing, I
cut a chrome sticker and sized by following a light at gear landing’s shape.
DECALS
Before us, I used poster color to
get lines at aircraft. For applying decals first I cut the decal from sheet and
dipped the decal in warm water for the seconds. After soaking for a few seconds, place
the decal over the model and, using a soft brush to hold the decal in place,
carefully slide the backing paper out from under the decal, taking care not to
stretch the decal in the process.
Do not be tempted to move the decal with your fingers. Use a brush and plenty of
water. Once in position, press down carefully and gently with a cotton bud
rolled gently over the decal to get rid of any trapped air or bubbles.
Proud to be Malaysian!
Nebuchednikov
Nizam
